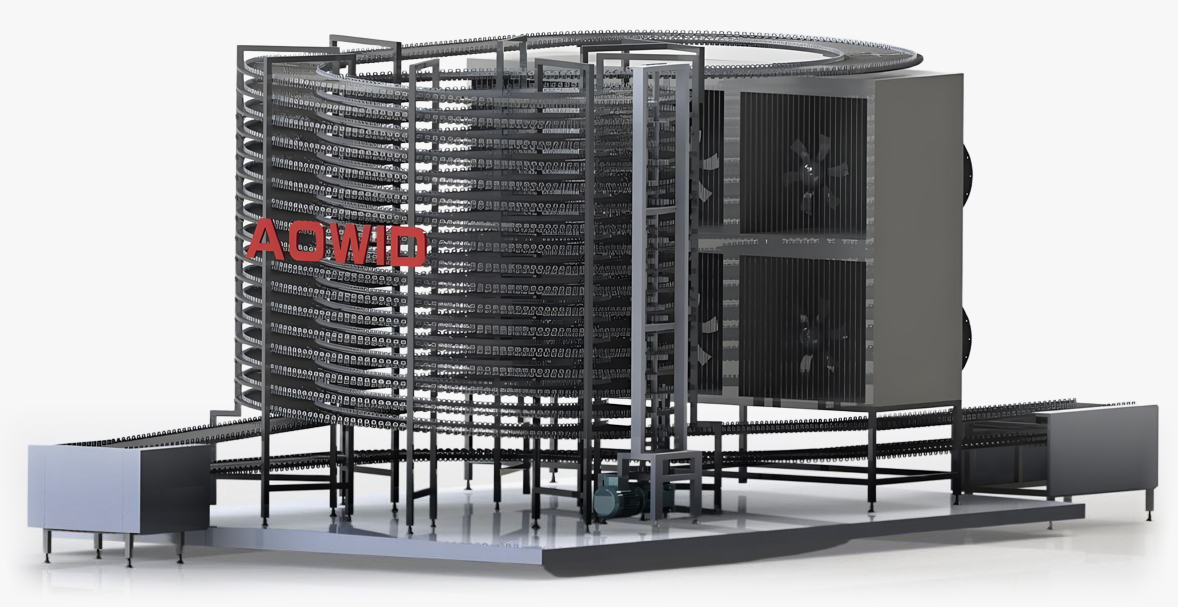

Sliding Rail Type Spiral Quick Freezer
● Spiral freezer is equipped with layer-by-layer transmission technology which is similar to European technology.
● The gear motor drives the gear on every layer through a spindle, and the gear stir the convey belt for movement. Every gear has intelligent power transmitter which can adjust the convey power.
● It is also a kind of advanced and efficient air-cooling system, which is used widely in many industries, especially in food processing field. It cools down the products (like bakery products from oven or French fries from frying machine) by room temperature air (sometimes adopt circulating fans).
● The belt speed is variable, so the retention time from inlet to outlet is much flexible. Suitable for cooling many kinds of products.
Features
● The belt can adjust automatically and keep the power equal because it has intelligent transmission technology. And the speed is adjustable.
● Input and output directions can be designed according to customers workshop's area, such as low input and high output/high input and low output/two input and two output/three input and three output, the elliptic type is also available.
● The convey belt is stainless steel 304.To grantee it is durable, the frame is ss304 or ss201 square steel tube.

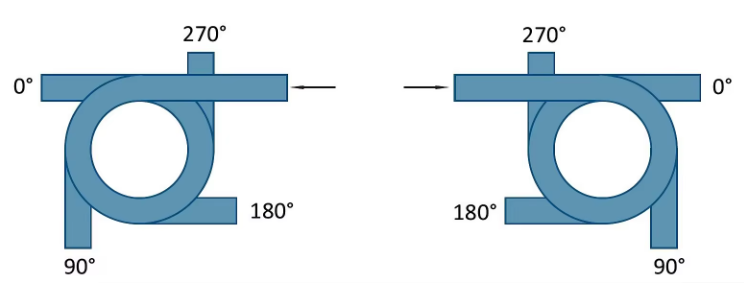

Belt Inlet and Outlet Directions Options
Input and output directions can be designed according to customers workshop's area. Generally, it can be designed for 0°, 90°,180°, 270°. If you have other requirements, we can contact engineers to customize.
