Large Capacity Shrimp Grading Machine High Precision Shrimp Sorting Machine for Seafood Processing

Availability:
Quantity:
  • OBS18
  • UFEC

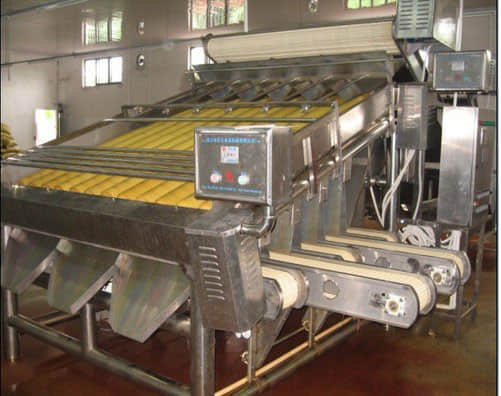

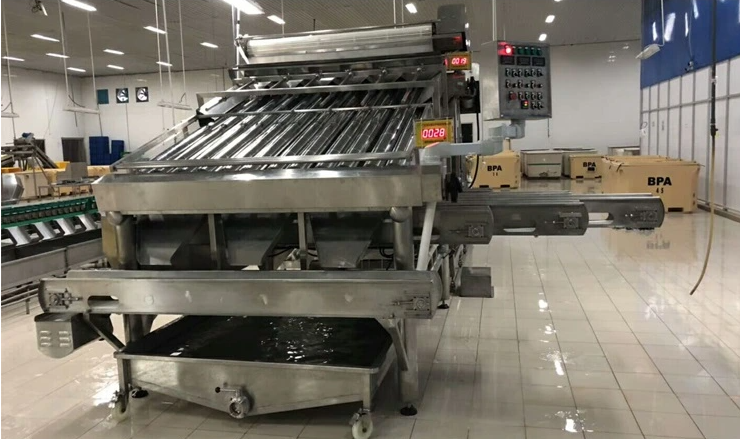

Shrimp Sorting Machine

The whole machine is made of SUS304 stainless steel material, which conforms to the food processing equipment industry standard and is convenient for cleaning work after work. The machine consists of three parts: one-stage conveying, two-stage conveying and grading drum set. The grading drum set is composed of at least two upper and lower rollers, and the gap between the two rollers can be automatically completed. The production process is greatly improved by the entire production process from the delivery to the sorting of the shrimp. This machine adopts numerical control to adjust the shrimp specifications, and the accuracy reaches the industry standard. It is the ideal processing equipment for the aquatic product processing industry.
Suitable for: different types of shrimp, headed shrimp, shrimp, etc.
Conveyor belt size: 1746mm wide plastic mesh belt, 10mm high baffle, two-stage hoist
Classification cylinder: 12 pieces of Φ125×130mm super-sliding plastic drum;
Conveyor belt material: high-strength polyvinyl chloride plastic belt
Power: Imported into 1.5KW × 1 set, 0.4KW × 2 sets, Starlight 0.75KW × 2 sets, stainless steel pure water pump 1.1KW × 1 set,Japan MITSUBISHI inverter
Lifting groove material: SUS 1.5mm 304# stainless steel plate.
Body frame: Φ114×2.5mm 304# stainless steel tube
Water supply part: stainless steel fittings on the cover, stainless steel pump PPR fittings
Rotating part: UCF 205 stainless steel bearing, shaft drive
Power distribution cabinet: Microcomputer control, stainless steel electric cabinet
All parts are stainless steel except the material.
