Large Automatic Pouch Bag Vacuum Packaging Machine

Availability:
Quantity:
  • XK-160
  • UFEC
Product information 1. This machine is composed of the rotary bag filling system and the rotary vacuum sealing system. The vacuum sealing system is a constant continuous rotating movement. 2. Easy and convenient operation: it adopts PLC touch screen centralized control and man-machine interface operating system to operate intuitively and easily. 3. Easy to change bags: the width of bag can be adjusted once; sealing line position can be adjusted once. 4. Unmanned operation: fully unmanned operation of measurement and packaging after inputting the task requirements. Automatic failure alarm. 5. Safe and reliable: a reliable detection and prevention system, no feeding, no sealing. 6. Smooth and wonderful sealing line: adopt the instantaneous heating and rapid cooling packaging. 7. Meet the hygiene standards of food processing, ensure the food hygiene and safety.Configuration1. The rotary bag filling system: made by 304 stainless steel processing parts, casting 304 stainless steel parts, high-precision bearings, imported plastic bearings, imported plastic wheels and other materials which meet the hygiene standards of food processing, ensure the food hygiene and safety, extend the machine life.2. The rotary vacuum sealing system: the material of turntable is casting aluminum, the material of vacuum chamber is aluminum processing parts, vacuum cover for high hardness engineering plastics. In the premise of meeting the hygienic standard and safety strength of packaging machinery, the weight is reduced and the motor power is saved. The other major components are assembled with 304 stainless steel parts, high-precision bearings and imported plastic bearings. The system is characterized by continuous and constant rotation, In order to ensure packaging and sealing quality.3. The conveyor system: adopt a variable frequency motor with constant torque which controls two rotating system in order to work in accurate, coordinated and high-speed. The conveyor system is cam control, the drive cam and gear is made by 20GrMnTi carburizing, quenching, grinding and other technical processing, maximize the equipment running accuracy and service life. 4. The control system: German Siemens (the main components include: PLC, touch screen, inverter), to ensure smooth operation and accurateness.5. Pneumatic components: German Siemens/Japan SMC imported components.6. The safety detection system: equipped with a sound safety testing system, so as to prevent, monitor and control; the main components are France Schneider imported components.7. Vacuum pump: with German BUSCH vacuum pump each machine which is respectively used for the first time  vacuum and the second vacuum. One Japanese oil-free pump for the rotary bag filling system with getting bag and opening bag. 8. Reserved station: the device reserves a number of stations which according to the different needs of customers, can be placed in different devices (such as code, shock, add fluid, etc.) 9. Feeding and filling: can add different feeding device (multi-head computer combination scale, screw metering device, scraper, working platform, liquid filling machine) according to different product characteristics and specific customer requirements.
Type:
XK-160
Available pouch size:
Width: 100-220mm Length: 120-320mm
Compressed air consumption:
> 0.35 cubic meters / minute
Cooler head:
24-30M
Power:
3 phase, AC 380V 50Hz
The total power:
12KW (including three sets of 7KW imported vacuum pump)
The total weight:
2300KG
Dimensions:
2800*1600*1800mm
Machine speed:
35-65 bags/min (depend on the bag size and weight)
Measurement methods:
scraper metering, screw metering, multi-head computer combination scale
Bag materials:
aluminum foil bags, handbags, PE bags, PP bags

Control panel

German Siemens (the main components include: PLC, touch screen, inverter), to ensure smooth operation and accurateness.

vacuum chamber

the material of vacuum chamber is aluminum processing parts, vacuum cover for high hardness engineering plastics. In the premise
of meeting the hygienic standard and safety strength of packaging machinery, the weight is reduced and the motor power is saved.

The rotary vacuum sealing system

the material of turntable is casting aluminum

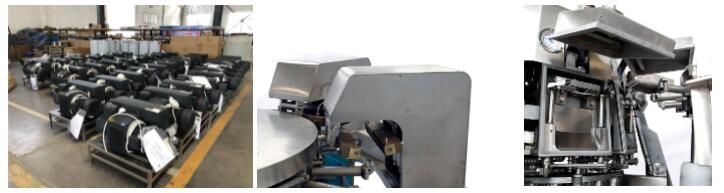

Vacuum Pump

Vacuum pump imported from BUSCH, Germany;
BUSCH RA0202D Vacuum Bump
BUSCH RA0100F Vacuum Bump

Material

Stainless steel 304
High strength,
Corrosion resistance,
Long service life

Gas flush

With 304 stainless steel parts, high-precision bearings and imported plastic bearings.  The system is characterized by continuous
and constant rotation, In order to ensure packaging and sealing quality.
