Desheng Food Quick Freeze And Cold Storage Project

Project Overview: Duck slaughtering and processing quick freezing project, consisting of 2 processing workshops, 17 quick freezing rooms at the end (with a total quick freezing capacity of about 300 tons), and 8 low-temperature refrigerated warehouses (about 8000 tons). Two sets of cold water systems.

Technical solution application: Two sets of fluorine/carbon dioxide R744 cascade refrigeration systems are designed for the refrigeration system, each system is equipped with two CO2 automatic bucket pump units, which are energy-saving, environmentally friendly, safe, and efficient.

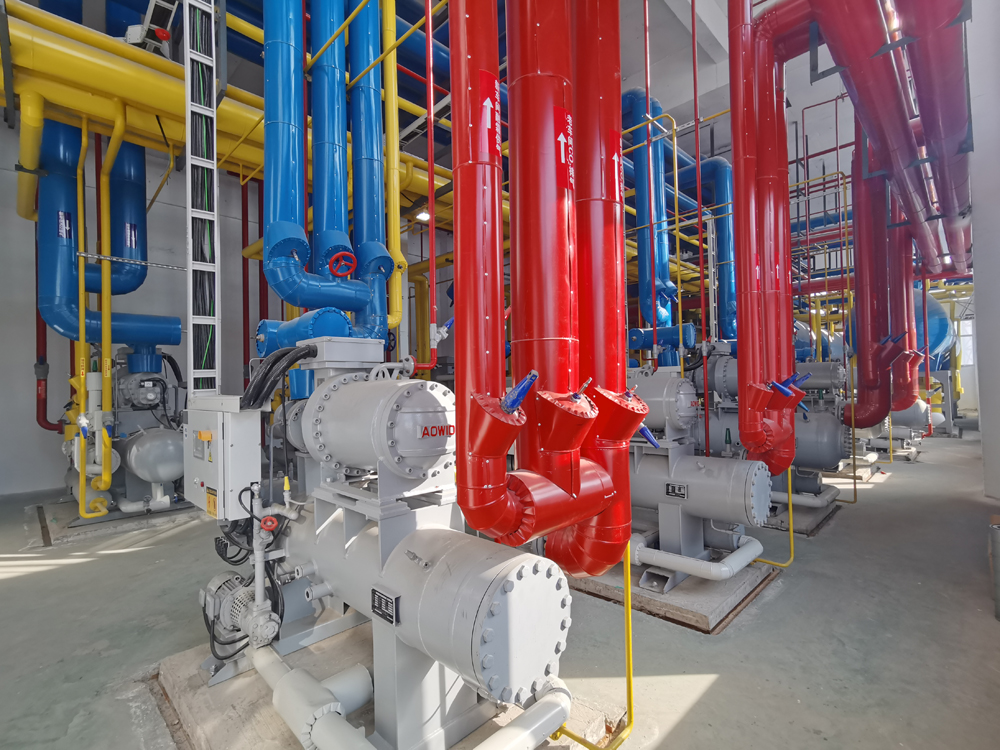

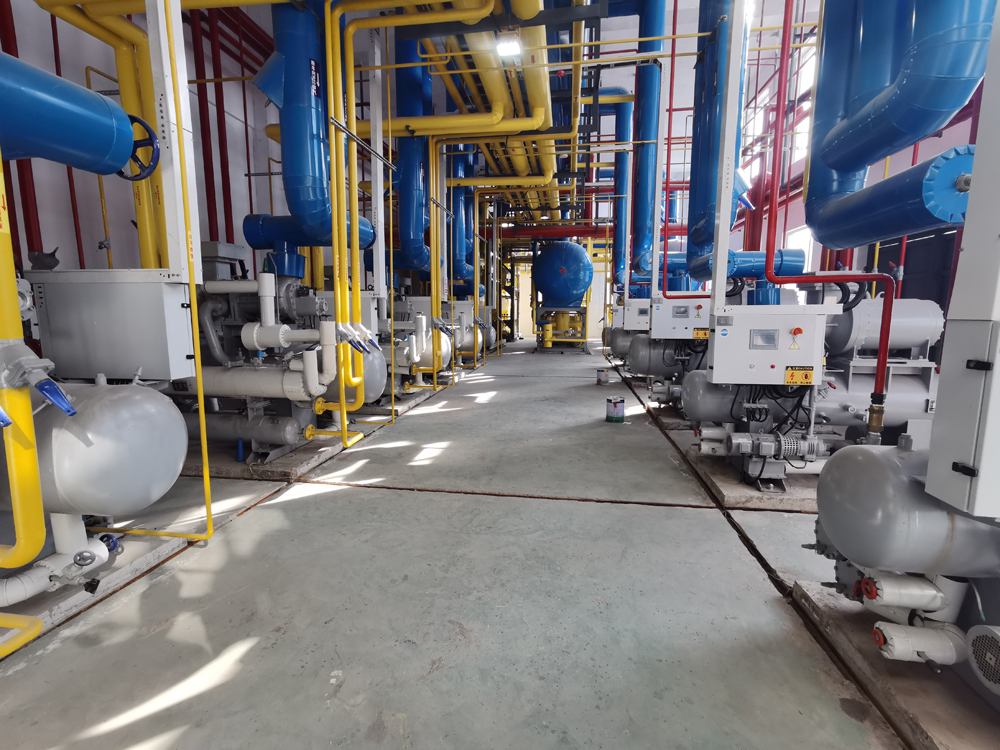

Two UHSC12T type CO2 automatic semi enclosed variable frequency screw units;

2 UHSC16T models;

Fluorine automatic screw unit UF20MTE, 4 units.

UF16MT， 2 units;

Stacked auxiliary unit: 2 sets;

CO2 bucket pump unit: ZWC-12, 4 units

Evaporative condenser: ZNX-2400, 4 units.
